Export a Schema as LangChain JSON

Already happy with how a Request Schema Version extracts data inside Librari Evals, and want to wire the same definition into your own LangChain pipeline? You don't have to retype anything. Every published schema version exposes a ready-to-paste pair of artifacts: the base prompt and the JSON Schema that drives withStructuredOutput.

What you'll get

Two copy-able blocks, both pinned to the version you're looking at:

• Base Prompt — the system prompt the model sees before any field-specific instructions. Pair it with your own user message in LangChain.
• Structured Output Schema (JSON) — a JSON Schema describing every field the schema version expects, with type, format, and per-field description strings the model uses to disambiguate.

Walkthrough

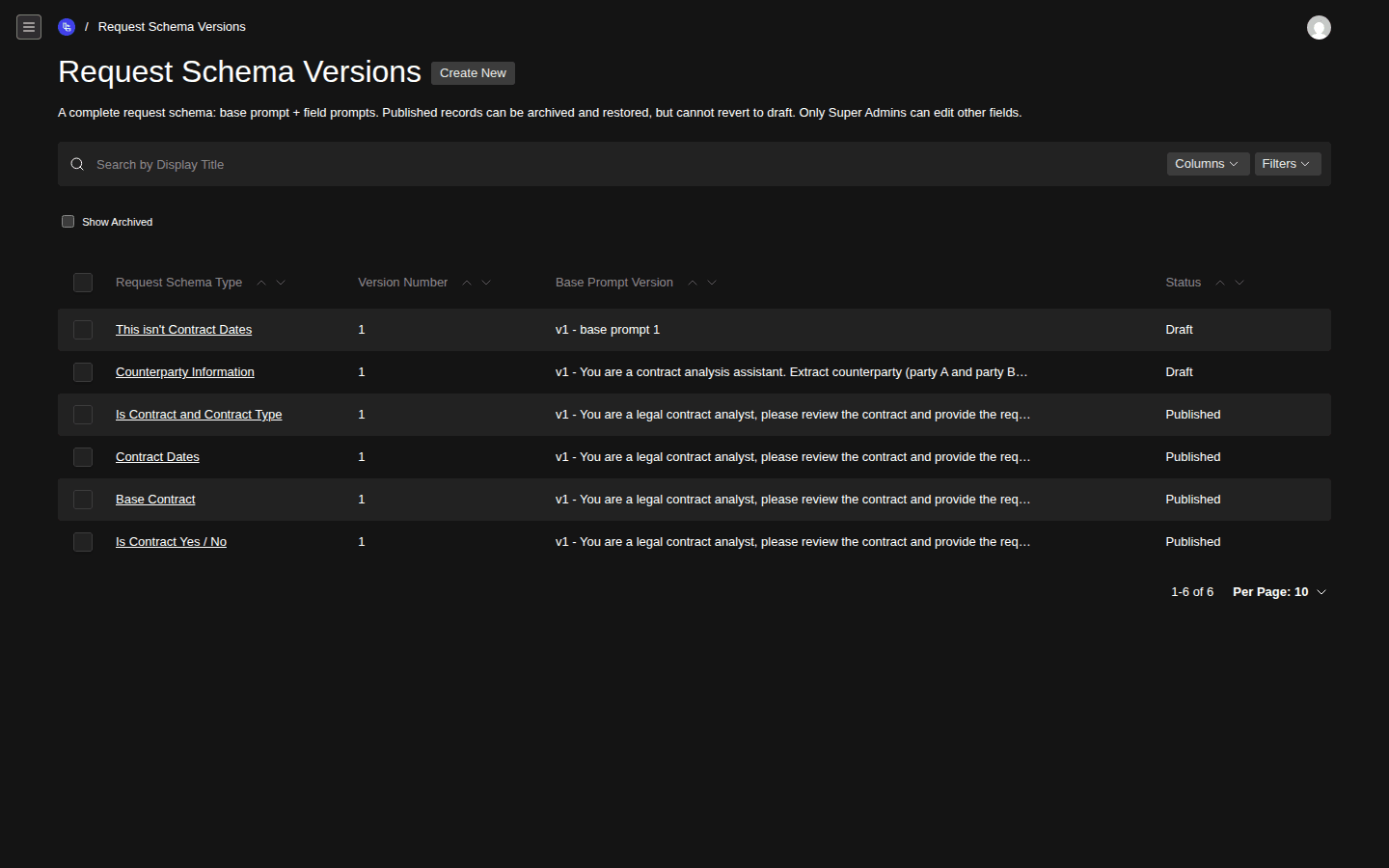

1. 1. Open the Request Schema Versions list

   Go to /admin/collections/request-schema-versions. You'll see one row per version per Request Schema Type — the table shows the Request Schema Type, Version Number, Base Prompt Version, and Status. The Base Prompt Version column shows the actual prompt text inline, truncated with an ellipsis, so you can tell versions apart without opening each one.



2. 2. Click into a Published version

   Pick the version you want to export and click its row. Drafts have an export too, but if you're going to point production code at a JSON Schema, point it at a Published version.

3. 3. Switch to the LangChain Schema tab

   The version detail page has three tabs: Edit, API, and LangChain Schema. Click LangChain Schema.



4. 4. Copy the base prompt

   Click Copy on the Base Prompt (v1) block. This is what you'll set as the system message in your LangChain ChatPromptTemplate.

5. 5. Copy the JSON Schema

   Click Copy on the Structured Output Schema (JSON) block. This is what you pass to model.withStructuredOutput(schema) (or the equivalent in your stack).

Plugging it in

In a typical LangChain Python or TypeScript setup:

from langchain_core.prompts import ChatPromptTemplate
from langchain_openai import ChatOpenAI

base_prompt = """<paste the Base Prompt block>"""
schema = { "type": "object", "properties": {...} }  # paste the JSON Schema block

prompt = ChatPromptTemplate.from_messages([
    ("system", base_prompt),
    ("human", "{document_text}"),
])

model = ChatOpenAI(model="gpt-5.4").with_structured_output(schema)
chain = prompt | model

The JSON Schema includes every field's description string verbatim from the field-prompt versions, so the model has the same per-field guidance it gets when the schema runs inside Librari Evals.

Notes

• The export reflects the version you're looking at. Open a different version to export a different snapshot — they're all immutable.
• The base prompt is the version pointed to by this Request Schema Version, not the latest base prompt for the parent Document Type. Switching base prompts means creating a new Request Schema Version.
• Field types map straightforwardly: string, integer, decimal → number, boolean, date → string with format: "date", enum → string with enum: [...], object → nested object, array → array.
